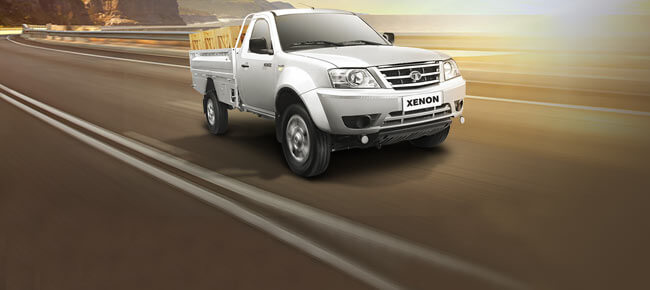

Tata Xenon Single Cabin Pickup Gallery

Tata Xenon SpecificationsOne of the best single cab trucks in the small pickup truck category that suits a wide range of commercial activities, the Xenon offers both excellent power and fuel economy. A blend of looks and performance, the Xenon single cab truck provides optimal space and functionality, even when negotiating the toughest terrains. Select a variant below for more details.

Select a model
  • Xenon 2.2 4X2
  • Xenon 2.2 4X4
  • Xenon 3.0 4X2
  • Xenon 3.0 4X4
  • Xenon Light Truck
Download Specifications for 140HP
Download Specifications for 148HP
SPECIFICATIONS Xenon 2.2 4×2 -140HP
ENGINE
Engine type Tata 2.2 litre dicor turbocharged engine
Engine capacity (cc) 2179
Max engine output 140 Bhp (103 kW) @ 4000 rpm
Max engine torque 320 Nm @ 1700 – 2700 rpm
Fuel tank capacity (ltrs) 70
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 76 syncromesh 5F + 1 R
Steering Power steering
SUSPENSION
Front Independent suspension with double wishbone with torsion bar shock absorber
Rear Parabolic leafspring with hydraulic double acting shock absorber
BRAKE
Front Vacuum assisted independent hydraulic brakes w/ tandem booster – disc
Rear Vacuum assisted independent hydraulic brakes w/ tandem booster – drum
ABS with EBD Bosch ABS 8.1
Wheels & Tyres
Type 215 / 75 R16 tubeless
Radius (inches) 16
DIMENSIONS
Wheelbase (mm) 2825
Length (mm) 4800
Width (mm) 1860
Height – Unladen (mm) 1765
Load body dimensions (mm) 1880 x 1410 x 410
Turning Circle Radius (metres) 5.5
Ground Clearance (mm) 200
WEIGHTS
GVW (Kg) 2950
Kerb weight (Kg) 1750
Payload (Kg) 1200
PERFORMANCE
Grade ability 41%
Top speed (kmph) 160
CABIN
Seating capacity Driver + 1
Body colours Arctic White, Quartz Black, Arctic Silver, Arizona Blue, Mineral Red, Dense Forest Green
COMFORT & CONVENIENCE

  • HVAC with pollen filler
  • Power steering
  • Adjustable steering column
  • Power windows – front and rear
  • Keyless entry and central locking
  • Adjustable lumbar support seats
  • Electrically adjustable outer rear view mirrors
  • Remote operated fuel flap
  • Rear window demister
  • Cup holder on central console
  • Cigarette lighter
  • Tachometer & trip meter
  • Illuminated ignition key slot
  • 12V power socket
  • Puddle lamps
  • Sunshade on screen
  • Seat belt (front) – height adjustable
  • Sun visor
  • Digital clock
  • 1 DIN provision music system
  • ORVM indicators
SAFETY & SECURITY

  • ABS with EBD
  • Door intrusion beam
  • Immobilizer
  • Child lock on rear door
  • Seat belt unfasten alarm
  • Tubeless tyres
  • Door open ajar warning/li>
  • Motorized headlamp adjustment
  • Fuel gauge with low fuel indicator warning
  • Antiglare rear view mirror
  • High mount stop lamp
  • Provision for child seat anchorage on rear wall
  • Collapsible steering column
  • Fog light front and rear
STYLE

  • Alloy wheels
  • Turn indicator on outer mirror
  • Leather wrapped steering wheel
  • Clear headlamps and tail lamps with multifocal reflector
  • Front body coloured bumper
  • Body coloured handles
  • Body coloured side view mirror
  • Front chrome plated grill
  • Cubic printing central console finish
  • Graphic instrument cluster
  • Radio antenna external
  • Chrome plated inner door handles
SPECIFICATIONS Xenon 2.2 4×2 -148HP
ENGINE
Engine type Tata 2.2 litre dicor turbocharged engine
Engine capacity (cc) 2179
Max engine output 148 Bhp (110 kW) @ 4000 rpm
Max engine torque 320 Nm @ 1500 – 3000 rpm
Fuel tank capacity (ltrs) 70
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 76 syncromesh 5F + 1 R
Steering Power steering
SUSPENSION
Front Independent suspension with double wishbone with torsion bar shock absorber
Rear Parabolic leafspring with hydraulic double acting shock absorber
BRAKE
Front Vacuum assisted independent hydraulic brakes w/ tandem booster – disc
Rear Vacuum assisted independent hydraulic brakes w/ tandem booster – drum
ABS with EBD Bosch ABS 8.1
Wheels & Tyres
Type 215 / 75 R16 tubeless
Radius (inches) 16
DIMENSIONS
Wheelbase (mm) 2825
Length (mm) 4800
Width (mm) 1860
Height – Unladen (mm) 1765
Load body dimensions (mm) 1880 x 1410 x 400
Turning Circle Radius (metres) 5.5
Ground Clearance (mm) 210
WEIGHTS
GVW (Kg) 3100
Kerb weight (Kg) 1875
Payload (Kg) 1225
PERFORMANCE
Grade ability 38%
Top speed (kmph) 160
CABIN
Seating capacity Driver + 1
Body colours Arctic White, Quartz Black, Arctic Silver, Arizona Blue, Mineral Red, Dense Forest Green
COMFORT & CONVENIENCE

  • HVAC with pollen filler
  • Power steering
  • Adjustable steering column
  • Power windows
  • Keyless entry and central locking
  • Adjustable lumbar support seats
  • Electrically adjustable outer rear view mirrors
  • Remote operated fuel flap
  • Rear window demister
  • Cup holder on central console
  • Cigarette lighter
  • Tachometer & trip meter
  • Illuminated ignition key slot
  • 12V power socket
  • Puddle lamps
  • Sunshade on screen
  • Seat belt (front) – height adjustable
  • Sun visor
  • Digital clock
  • 1 DIN provision music system
  • ORVM indicators
SAFETY & SECURITY

  • Airbags – driver and passenger
  • ABS with EBD
  • Limited slip differential
  • Door intrusion beam
  • Immobilizer
  • Child lock
  • Seat belt unfasten alarm
  • Tubeless tyres
  • Door open ajar warning
  • Motorized headlamp adjustment
  • Fuel gauge with low fuel indicator warning
  • Antiglare rear view mirror
  • High mount stop lamp
  • Collapsible steering column
  • Fog light front and rear
STYLE

  • Alloy wheels
  • Turn indicator on outer mirror
  • Leather wrapped steering wheel
  • Clear headlamps and tail lamps with multifocal reflector
  • Front body coloured bumper
  • Body coloured handles
  • Body coloured side view mirror
  • Front chrome plated grill
  • Cubic printing central console finish
  • Graphic instrument cluster
  • Radio antenna external
  • Chrome plated inner door handles
Download Specifications for 140HP
Download Specifications for 148HP
SPECIFICATIONS Xenon 2.2 4×4 -140HP
ENGINE
Engine type Tata 2.2 litre dicor turbocharged engine
Engine capacity (cc) 2179
Max engine output 140 Bhp (103 kW) @ 4000 rpm
Max engine torque 320 Nm @ 1700 – 2700 rpm
Fuel tank capacity (ltrs) 70
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 76 syncromesh 5F + 1 R
Steering Power steering
SUSPENSION
Front Independent suspension with double wishbone with torsion bar shock absorber
Rear Parabolic leafspring with hydraulic double acting shock absorber
BRAKE
Front Vacuum assisted independent hydraulic brakes w/ tandem booster – disc
Rear Vacuum assisted independent hydraulic brakes w/ tandem booster – drum
ABS with EBD Bosch ABS 8.1
Wheels & Tyres
Type 215 / 75 R16 tubeless
Radius (inches) 16
DIMENSIONS
Wheelbase (mm) 2825
Length (mm) 4800
Width (mm) 1860
Height – Unladen (mm) 1765
Load body dimensions (mm) 1880 x 1410 x 410
Turning Circle Radius (metres) 5.5
Ground Clearance (mm) 200
WEIGHTS
GVW (Kg) 2950
Kerb weight (Kg) 1980
Payload (Kg) 970
PERFORMANCE
Grade ability 90%
Top speed (kmph) 160
CABIN
Seating capacity Driver + 1
Body colours Arctic White, Quartz Black, Arctic Silver, Arizona Blue, Mineral Red, Dense Forest Green
COMFORT & CONVENIENCE

  • HVAC with pollen filler
  • Power steering
  • Adjustable steering column
  • Power windows
  • Keyless entry and central locking
  • Adjustable lumbar support seats
  • Electrically adjustable outer rear view mirrors
  • Remote operated fuel flap
  • Rear window demister
  • Cup holder on central console
  • Cigarette lighter
  • Tachometer & trip meter
  • 12V power socket
  • Digital clock
  • Illuminated ignition key slot
  • Puddle lamps
  • Sunshade on screen
  • Seat belt (front) – height adjustable
  • Sun visor
  • 1 DIN provision music system
  • ORVM indicators
SAFETY & SECURITY

  • ABS with EBD
  • Limited slip differential
  • Door intrusion beam
  • Immobilizer
  • Child lock
  • Seat belt unfasten alarm
  • Tubeless tyres
  • Door open ajar warning
  • Motorized headlamp adjustment
  • Fuel gauge with low fuel indicator warning
  • Antiglare rear view mirror
  • High mount stop lamp
  • Collapsible steering column
  • Fog light front and rear
  • ESOF 4X4 option
STYLE

  • Alloy wheels
  • Turn indicator on outer mirror
  • Leather wrapped steering wheel
  • Clear headlamps and tail lamps with multifocal reflector
  • Front body coloured bumper
  • Body coloured handles
  • Body coloured side view mirror
  • Front chrome plated grill
  • Cubic printing central console finish
  • Graphic instrument cluster
  • Radio antenna external
  • Chrome plated inner door handles
SPECIFICATIONS Xenon 2.2 4×2 -148HP
ENGINE
Engine type Tata 2.2 litre dicor turbocharged engine
Engine capacity (cc) 2179
Max engine output 148 Bhp (110 kW) @ 4000 rpm
Max engine torque 320 Nm @ 1500 – 3000 rpm
Fuel tank capacity (ltrs) 70
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 76 syncromesh 5F + 1 R
Steering Power steering
SUSPENSION
Front Independent suspension with double wishbone with torsion bar shock absorber
Rear Parabolic leafspring with hydraulic double acting shock absorber
BRAKE
Front Vacuum assisted independent hydraulic brakes w/ tandem booster – disc
Rear Vacuum assisted independent hydraulic brakes w/ tandem booster – drum
ABS with EBD Bosch ABS 8.1
Wheels & Tyres
Type 215 / 75 R16 tubeless
Radius (inches) 16
DIMENSIONS
Wheelbase (mm) 2825
Length (mm) 4800
Width (mm) 1860
Height – Unladen (mm) 1765
Load body dimensions (mm) 1880 x 1410 x 400
Turning Circle Radius (metres) 5.5
Ground Clearance (mm) 210
WEIGHTS
GVW (Kg) 3100
Kerb weight (Kg) 1965
Payload (Kg) 1135
PERFORMANCE
Grade ability 78%
Top speed (kmph) 160
CABIN
Seating capacity Driver + 1
Body colours Arctic White, Quartz Black, Arctic Silver, Arizona Blue, Mineral Red, Dense Forest Green
COMFORT & CONVENIENCE

  • HVAC with pollen filler
  • Power steering
  • Adjustable steering column
  • Power windows
  • Keyless entry and central locking
  • Adjustable lumbar support seats
  • Electrically adjustable outer rear view mirrors
  • Remote operated fuel flap
  • Rear window demister
  • Cup holder on central console
  • Cigarette lighter
  • Tachometer & trip meter
  • Illuminated ignition key slot
  • 12V power socket
  • Puddle lamps
  • Sunshade on screen
  • Seat belt (front) – height adjustable
  • Sun visor
  • Digital clock
  • 1 DIN provision music system
  • ORVM indicators
SAFETY & SECURITY

  • Airbags – driver and passenger
  • ABS with EBD
  • Limited slip differential
  • Door intrusion beam
  • Immobilizer
  • Child lock
  • Seat belt unfasten alarm
  • Tubeless tyres
  • Door open ajar warning
  • Motorized headlamp adjustment
  • Fuel gauge with low fuel indicator warning
  • Antiglare rear view mirror
  • High mount stop lamp
  • Collapsible steering column
  • Fog light front and rear
  • ESOF 4X4 option
STYLE

  • Alloy wheels
  • Turn indicator on outer mirror
  • Leather wrapped steering wheel
  • Clear headlamps and tail lamps with multifocal reflector
  • Front body coloured bumper
  • Body coloured handles
  • Body coloured side view mirror
  • Front chrome plated grill
  • Cubic printing central console finish
  • Graphic instrument cluster
  • Radio antenna external
  • Chrome plated inner door handles
Download Specifications
SPECIFICATIONS Xenon 3.0 4×2
ENGINE
Engine type Tata 3.0 litre dicor turbocharged engine
Engine capacity (cc) 2956
Max engine output 111 hp (84.5 kW) @ 3000 rpm
Max engine torque 300 Nm @1800 – 2000 rpm
Fuel tank capacity (ltrs) 70
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 76 syncromesh 5F + 1 R
Steering Power steering
SUSPENSION
Front Independent suspension with double wishbone with torsion bar shock absorber
Rear Parabolic leafspring with hydraulic double acting shock absorber
BRAKE
Front Vacuum assisted independent hydraulic brakes w/ tandem booster – disc
Rear Vacuum assisted independent hydraulic brakes w/ tandem booster – drum
WHEEL & TYRES
Type 215 / 75 R16 tubeless
Radius (inches) 16
DIMENSIONS
Wheelbase (mm) 2825
Length (mm) 4800
Width (mm) 1860
Height – Unladen (mm) 1765
Load body dimensions (mm) 1880 x 1410 x 410
Turning Circle Radius (metres) 5.5
Ground Clearance (mm) 210
WEIGHTS
GVW (Kg) 2950
Kerb weight (Kg) 1980
Payload (Kg) 980
PERFORMANCE
Grade ability 90%
Top speed (kmph) 143
CABIN
Seating capacity Driver + 1
Body colours Arctic White, Quartz Black, Arctic Silver, Arizona Blue, Mineral Red, Dense Forest Green
COMFORT & CONVENIENCE

  • HVAC with pollen filler
  • Power steering
  • Adjustable steering column
  • Power windows
  • Keyless entry and central locking
  • Adjustable lumbar support seats
  • Electrically adjustable outer rear view mirrors
  • Remote operated fuel flap
  • Tachometer & trip meter
  • Cigarette lighter
  • 12V power socket
  • Digital clock
  • Illuminated ignition key slot
  • Puddle lamps
  • Sunshade on screen
  • Seat belt (front) – height adjustable
  • Sun visor
  • Rear window demister
  • 1 DIN provision music system
  • Cup holder on central console
SAFETY & SECURITY

  • Airbags – driver and passenger
  • Limited slip differential
  • Door intrusion beam
  • Immobilizer
  • Child lock
  • Seat belt unfasten alarm
  • Tubeless tyres
  • Door open ajar warning
  • Motorized headlamp adjustment
  • Fuel gauge with low fuel indicator warning
  • Antiglare rear view mirror
  • High mount stop lamp
  • Collapsible steering column
  • Fog light front and rear
STYLE

  • Alloy wheels
  • Turn indicator on outer mirror
  • Leather wrapped steering wheel
  • Clear headlamps and tail lamps with multifocal reflector
  • Front body coloured bumper
  • Body coloured handles
  • Body coloured side view mirror
  • Front chrome plated grill
  • Cubic printing central console finish
  • Graphic instrument cluster
  • Radio antenna external
  • Chrome plated inner door handles
Download Specifications
SPECIFICATIONS Xenon 3.0 4×4
ENGINE
Engine type Tata 3.0 litre dicor turbocharged engine
Engine capacity (cc) 2956
Max engine output 111 hp (84.5 kW) @ 3000 rpm
Max engine torque 300 Nm @1800 – 2000 rpm
Fuel tank capacity (ltrs) 70
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 76 syncromesh 5F + 1 R
Steering Power steering
SUSPENSION
Front Independent suspension with double wishbone with torsion bar shock absorber
Rear Parabolic leafspring with hydraulic double acting shock absorber
BRAKE
Front Vacuum assisted independent hydraulic brakes w/ tandem booster – disc
Rear Vacuum assisted independent hydraulic brakes w/ tandem booster – drum
WHEEL & TYRES
Type 215 / 75 R16 tubeless
Radius (inches) 16
DIMENSIONS
Wheelbase (mm) 2825
Length (mm) 4800
Width (mm) 1860
Height – Unladen (mm) 1765
Load body dimensions (mm) 1880 x 1410 x 410
Turning Circle Radius (metres) 5.5
Ground Clearance (mm) 210
WEIGHTS
GVW (Kg) 2950
Kerb weight (Kg) 2060
Payload (Kg) 980
PERFORMANCE
Grade ability 64%
Top speed (kmph) 143
CABIN
Seating capacity Driver + 1
Body colours Arctic White, Quartz Black, Arctic Silver, Arizona Blue, Mineral Red, Dense Forest Green
COMFORT & CONVENIENCE

  • HVAC with pollen filler
  • Power steering
  • Adjustable steering column
  • Power windows
  • Keyless entry and central locking
  • Adjustable lumbar support seats
  • Electrically adjustable outer rear view mirrors
  • Remote operated fuel flap
  • Tachometer & trip meter
  • Cigarette lighter
  • 12V power socket
  • Digital clock
  • Illuminated ignition key slot
  • Puddle lamps
  • Sunshade on screen
  • Seat belt (front) – height adjustable
  • Sun visor
  • Rear window demister
  • 1 DIN provision music system
  • Cup holder on central console
SAFETY & SECURITY

  • Airbags – driver and passenger
  • Limited slip differential
  • Door intrusion beam
  • Immobilizer
  • Child lock
  • Seat belt unfasten alarm
  • Tubeless tyres
  • Door open ajar warning
  • Motorized headlamp adjustment
  • Fuel gauge with low fuel indicator warning
  • Antiglare rear view mirror
  • High mount stop lamp
  • Collapsible steering column
  • Fog light front and rear
  • ESOF 4X4 option
STYLE

  • Alloy wheels
  • Leather wrapped steering wheel
  • Clear headlamps and tail lamps with multifocal reflector
  • Front body coloured bumper
  • Body coloured handles
  • Body coloured side view mirror
  • Front chrome plated grill
  • Cubic printing central console finish
  • Graphic instrument cluster
  • Radio antenna external
  • Chrome plated inner door handles
Download Specifications
SPECIFICATIONS Xenon Light Truck
ENGINE
Engine type Tata 3.0 litre dicor turbocharged engine
Engine capacity (cc) 2956
Max engine output 72 hp (52 kW) @ 3000 rpm
Max engine torque 223 Nm @ 1600 – 2200 rpm
Fuel tank capacity (ltrs) 60
TRANSMISSION AND STEERING
Clutch Single plate dry friction type
Gearbox GBS 76 syncromesh 5F + 1 R
Steering Power steering
SUSPENSION
Front Independent suspension with double wishbone with torsion bar shock absorber
Rear Parabolic leafspring with hydraulic double acting shock absorber
BRAKE
Front Vacuum assisted independent hydraulic brakes w/ tandem booster – disc
Rear Vacuum assisted independent hydraulic brakes w/ tandem booster – drum
WHEEL & TYRES
Type 215 / 75 R16 tubeless
Radius (inches) 16
DIMENSIONS
Wheelbase (mm) 3150
Length (mm) 5340
Width (mm) 1860
Height – Unladen (mm) 1810
Load body dimensions (mm) 2550x 1750x 415
Turning Circle Radius (metres) 6.35
Ground Clearance (mm) 180
WEIGHTS
GVW (Kg) 3490
Kerb weight (Kg) 1910
Payload (Kg) 1580
PERFORMANCE
Grade ability 29%
Top speed (kmph) 120
CABIN
Seating capacity Driver + 1
Body colours Arctic White, Quartz Black, Arctic Silver, Arizona Blue, Mineral Red, Dense Forest Green
COMFORT & CONVENIENCE

  • HVAC with pollen filler
  • Power steering
  • Adjustable steering column
  • Adjustable lumbar support seats
  • Tachometer & trip meter
  • 12V power socket
  • Illuminated ignition key slot
  • Puddle lamps
  • Digital clock
  • Sunshade on screen
  • Seat belt (front) – height adjustable
  • Sun visor
  • 1 DIN provision music system
  • Cup holder on central console
  • Cigarette lighter
SAFETY & SECURITY

  • Door intrusion beam
  • Tubeless tyres
  • Mechanical motorized headlamp adjustment
  • Fuel gauge with low fuel indicator warning
  • Antiglare rear view mirror
  • High mount stop lamp
  • Collapsible steering column
  • Provision for Fog light front and rear
STYLE

  • Clear headlamps and tail lamps with multifocal reflector
  • Front body coloured bumper
  • Body coloured handles
  • Body coloured side view mirror
  • Front chrome plated grill
  • Central console finish
  • Graphic instrument cluster
  • Radio antenna external
  • Chrome plated inner door handles
View Compare ()
